Shanghai Hisco provides embossed aluminium sheets for several sectors, for the food industry. To have more info about our products, please contact us!
Grade: 1052, 5652, 5154, 5454, 5083, 6063 ,2014, 2017, 2117, 5086, etc
Thickness: 0.3-10.0mm
Width: 500-1550mm
Length: 500-9000mm

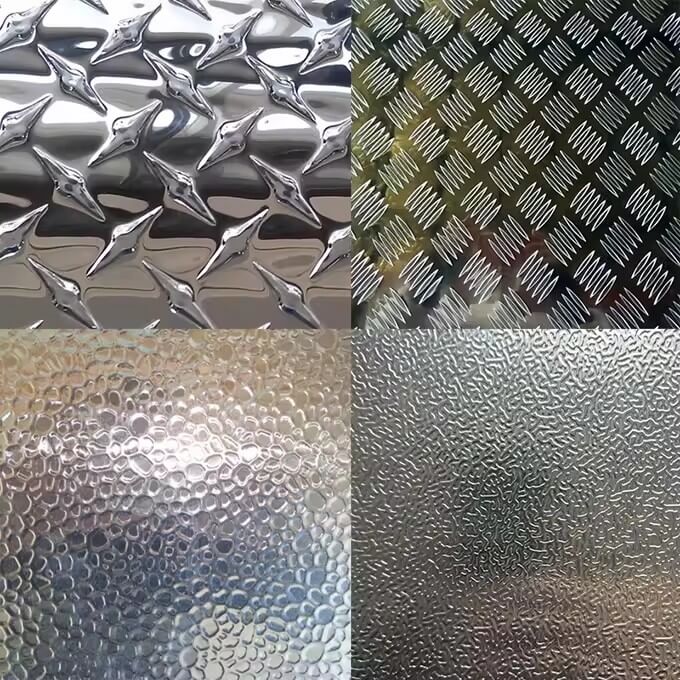

Pattern Type: big five bars, smaal five bars,three bars, pointer type, diamond shape, orange peel pattern
Surface Quality: be free from Oil Stain, Dent Inclusion, Scratches, Stain, Oxide Discolorration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defact which will interfere with use
An embossed sheet indicates an originally bare aluminum sheet on which a design or texture in relief has been imprinted: veins, pores, marks, geometric figures and so on. Usually this process is made on fabrics, paper, leather, wood, rubber and obviously aluminum thin sheets. Embossing process is carried out to make the product more aesthetically appealing or to make it more workable, to imprint the trademark or logo on a material, to give the product mechanical qualities, to imitate another material that already has intrinsic embossing. This process can be performed on one or both sides of the product.
Final application of embossed sheets
Embossed sheet, made extremely thin, is widely used in the food industry – to wrap chocolates or butter, to manufacture yoghurt lids and take-away containers -. This happens thanks to aluminium characteristics that combines the lightness of the material with the ability to protect food from external contaminants, oxygen, light, humidity and gas. Embossed aluminum also prolongs the shelf life of food by preserving its taste and aroma.
Shanghai Hisco provides embossed aluminium sheets for several sectors, for the food industry. To have more info about our products, please contact us!
| Product Name | Embossed aluminum checkerd sheet |
| Standard | ASTM GB/T ENAW |
| Alloy | 1050 1060 1100 3003 3004 3005 3105 5052 5754 5083 5086 6061 6063 7075 8011etc |
| Temper | O H12/H22 H14/H24, H16, H18, H32,H111, T6,T4 etc |
| Thickness | 0.7mm-10.0mm |
| Width | 20-2600mm |
| Length | 1000mm,2000mm,2440mm,3000mm,3048mm,6000mm, or as required |
Emboss Patterns | small 5bar, big 5 bar, |
| 3bar, 2 bar, 1bar, | |
| diamond, propeller, pointer, etc | |
| Advantages | 1. accurate size, good anti-slip effect,wide range of applications |
| 2. strong plasticity, easy forming and excellent processing performance. | |
| 3. Embossed aluminum sheet can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance. | |
| 4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability | |
| 5. The surface quality of aluminum checker plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs. | |
| Package | Standard seaworthy export wooden pallets |
| Delivery time | Around 15-30 days |
| Application | floor of airplane, light rail and vehicles; deck of vessel, stairs, ladders, shelves,temporary scaffolding, platform, suspension beam, elevators, etc. |
We are factory and we can provide competitive price.
Of course, we welcome customers from all over the world to visit our factory.
Of course, we can provide customers with free samples and express shipping service to all over of the world.
Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Usually our lead time is 7 working days, if you need this order in a hurry, pls feel free to let me know, I’ll negotiate with our production team and put your order as priority.
Yes,if you have your own design , we can produce according to your specification and drawing.
